Wholesale 10HP-200HP Energy-Efficient Oil-Lubricated PM VSD Air Compressor Suppliers, Exporters

The Senovair Oil-Lubricated PM VSD Screw Air Compressor is engineered to deliver stable, energy-efficient compressed air for demanding industrial applications. Featuring a high-efficiency permanent magnet motor, intelligent VSD technology, and a reliable screw airend, the system automatically adjusts output to match air demand, reducing energy waste and operating costs. The integrated controller provides real-time monitoring and easy operation, while premium electrical components ensure long-term reliability. With low noise levels, compact design, and simplified maintenance access, this compressor is an ideal solution for manufacturing, automotive, textile, packaging, electronics, and other industries requiring a dependable compressed air supply.

Send Inquiry

Product Description

Core Components

Air-end

The reliability and stability of an air compressor are greatly dependent on the air-end, which can be considered the heart of the air compressor. Choosing a high-quality and reliable air-end is a responsibility to our customers and to ourselves. Our air compressors primarily use air-ends from Baosi, a professional air-end manufacturer with annual sales of approximately $500 million. We can guarantee the quality of the air-ends, and even if problems arise, we will provide a solution within 24 hours.

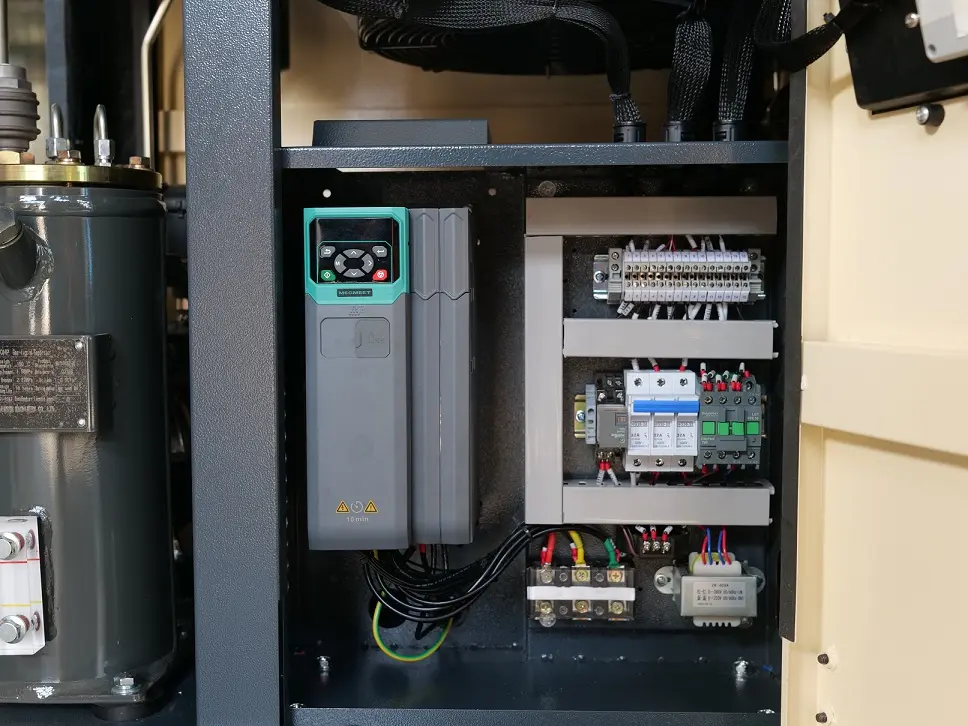

Inverter

The inverter is the brain of the air compressor, and all operations of the air compressor are processed and regulated through the inverter, ensuring the safe and reliable operation of the air compressor system in all aspects. We typically use inverters from Megmeet, Inovance, and Zoncn, which are internationally renowned brands with stable and reliable quality and guaranteed after-sales service, providing customers with the best possible air compressor user experience.

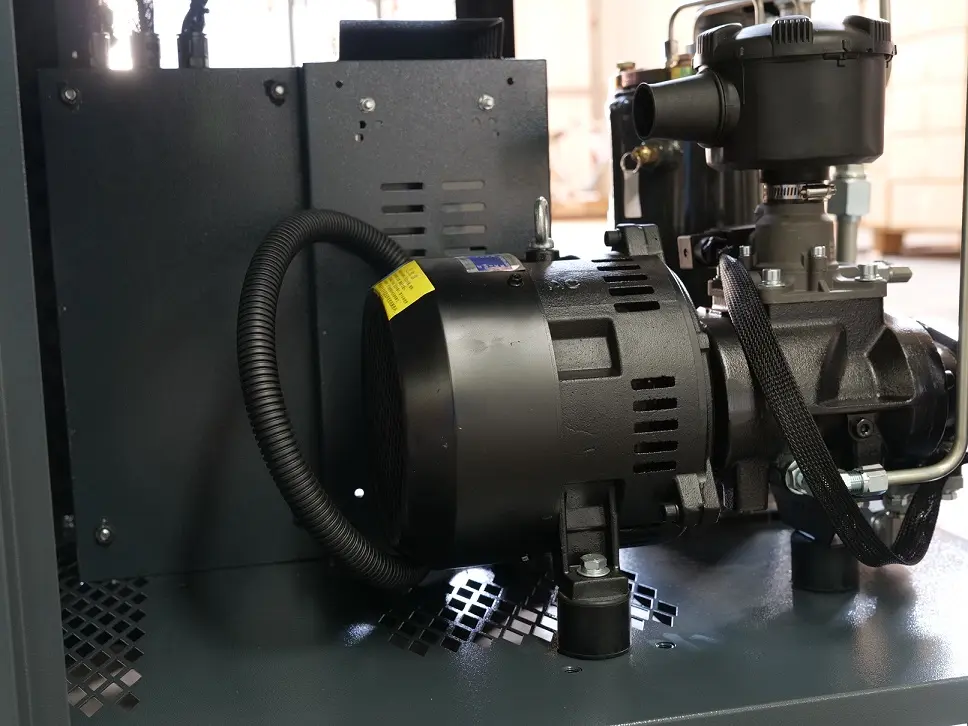

Motor

The electric motor, as the power source of the air compressor, is extremely important and cannot be easily damaged, so we were very careful in our selection. After comparing several brands, we finally chose Jinlong and Jiangtian, both with IP55 protection ratings and truly possessing first-class energy efficiency. We believe many of you have heard of these two brands and highly appreciate their quality and stability. Therefore, your choice is also our choice, with quality as the primary criterion for evaluation.

Technical Parameters

PM VSD Screw Air Compressor Technical Parameters (10HP - 75HP)
Model	SA-10HP	SA-15HP	SA-20HP	SA-30HP	SA-50HP	SA-60HP	SA-75HP
Power (KW)	7.5	11	15	22	37	45	55
Horsepower (HP)	10	15	20	30	50	60	75
Air Displacement / Pressure (m³/min/MPa)	1.2/0.7 1.1/0.8 0.95/1.0 0.8/1.2	1.6/0.7 1.5/0.8 1.3/1.0 1.1/1.2	2.4/0.7 2.3/0.8 1.8/1.0 1.6/1.2	3.8/0.7 3.6/0.8 3.0/1.0 2.6/1.2	6.6/0.7 6.3/0.8 5.8/1.0 5.2/1.2	8.0/0.7 7.7/0.8 7.0/1.0 5.8/1.2	10.0/0.7 9.2/0.8 8.7/1.0 7.5/1.2
Air Outlet Size	DN15	DN20	DN20	DN25	DN40	DN40	DN50
Lubricating Oil Volume (L)	5	9	9	18	30	30	65
Noise dB(A)	63±2	65±2	65±2	67±2	69±2	70±2	72±2
Driven Method	Direct Driven
Type	PM VSD
Start Method	Variable Frequency Start
Dimensions (L x W x H mm)	950x670x860	1050x700x1120	1050x700x1120	1300x850x1160	1500x1000x1300	1500x1000x1300	1600x1250x1550
Weight (kg)	188	275	285	405	550	700	950

PM VSD Screw Air Compressor Technical Parameters (100HP - 275HP)
Model	SA-100HP	SA-125HP	SA-150HP	SA-175HP	SA-220HP	SA-250HP	SA-275HP
Power (KW)	75	90	110	132	160	185	200
Horsepower (HP)	100	125	150	175	220	250	275
Air Displacement / Pressure (m³/min/MPa)	13.3/0.7 13.0/0.8 10.9/1.0 9.8/1.2	16.3/0.7 15.8/0.8 14.0/1.0 12.8/1.2	21.0/0.7 20.0/0.8 18.0/1.0 16.0/1.2	24.6/0.7 23.0/0.8 21.0/1.0 18.8/1.2	31.0/0.7 30.0/0.8 26.0/1.0 22.0/1.2	34.0/0.7 33.0/0.8 28.9/1.0 23.9/1.2	39.7/0.7 37.3/0.8 34.1/1.0 29.0/1.2
Air Outlet Size	DN50	DN50	DN65	DN65	DN80	DN80	DN80
Lubricating Oil Volume (L)	65	90	90	110	110	130	150
Noise dB(A)	74±2	76±2	78±2	80±2	82±2	84±2	85±2
Driven Method	Direct Driven
Type	PM VSD
Start Method	Variable Frequency Start
Dimensions (L x W x H mm)	1600x1250x1550	1900x1250x1600	2020x1590x1810	2020x1590x1810	2360x1610x1860	2800x1800x2150	2800x1800x2150
Weight (kg)	1130	1350	1500	1800	1950	2400	2800

Manufacturing Capability

Our production facility boasts a 15,000 ㎡ production base equipped with a specialized testing validation workshop, ensuring stable performance and energy efficiency of every air compressor before delivery. We have also built a full-process production line for air tanks, allowing us to provide a more complete and integrated product portfolio. We are committed to supplying customers with highly competitive products and tailored compressed air system solutions.

We employ a professional technical team that leads industry innovation. Backed by a complete pre-sales and after-sales service team offering product consultation and reliable technical support, we are dedicated to bringing high-quality air compressors to the global market and advancing green, sustainable development across the industry.

Frequently Asked Questions

How to choose an air compressor?

When selecting an air compressor, it’s important to consider the specific needs of your site. Factors to consider include the required flow rate, desired pressure, whether an oil-based or oil-free machine is preferred, and the dew point temperature of the compressed air. By taking these factors into account, you can choose an air compressor that meets your specific needs and ensures optimal performance.

Which payment terms can you accept?

We can accept flexible payment terms including Bank Transfer, LC, DP, or combination terms as negotiated.

Can you do OEM and ODM?

Yes, OEM and ODM are both available. Based on your requirements for materials, colors, and styles, the minimum order quantities will be advised after direct discussion.

What is the Minimum Order Quantity (MOQ)?

The MOQ for sample orders is 1 set. For standard compressors ranging from 7.5 to 37kW, the MOQ is 3-5 sets. For larger compressors over 55kW, the MOQ is 1-2 sets. MOQs can be adjusted depending on your specific requirements.

How long does production take?

As an experienced manufacturer, our standard production lead time is typically between 20 to 25 days.

What after-sales services are provided?

1. We provide online installation and commissioning instructions.
2. Trained engineers are available to support overseas servicing requirements within the warranty period.
3. Global representation and agents are available to handle local support requests.
