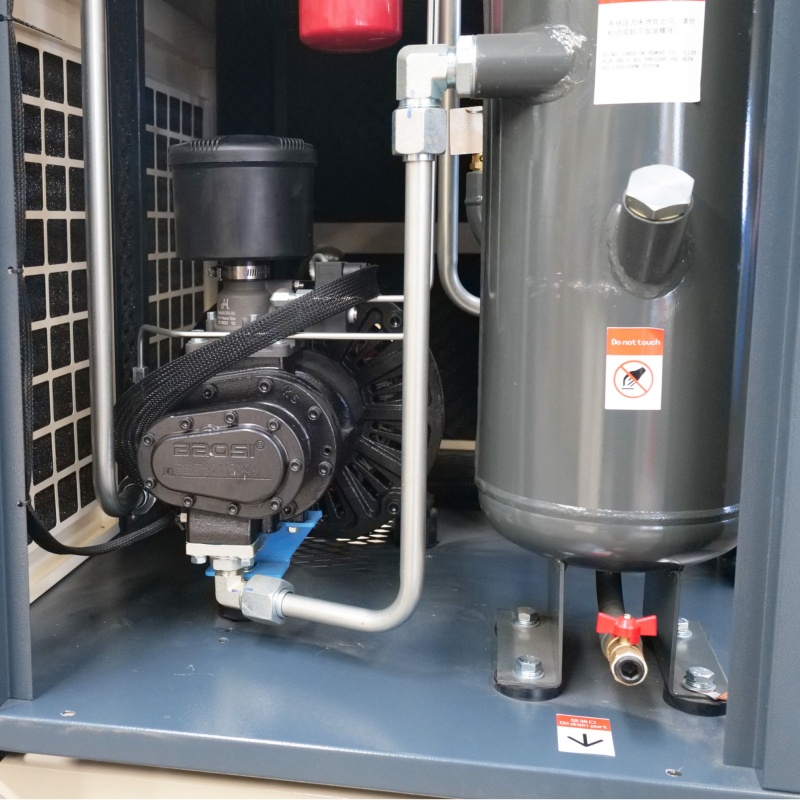

The air end connects the motor via 1:1 direct coupling. Lightweight structural design reduces vibration and noise sources, enhancing equipment stability.
We utilize top-tier third-generation asymmetric twin-screw air ends with refined production techniques. Designed with high-efficiency low-pressure tooth profile and axial air intake.
Optimized flow channels together with large rotors running at low speed achieve outstanding performance, improving energy efficiency by 5%~15%.
Heavy-duty bearings and double-lip shaft seals guarantee reliable long-term operation. Bearings have a rated service life of 80,000–100,000 hours, while the air end’s design lifespan hits approximately 200,000 hours.

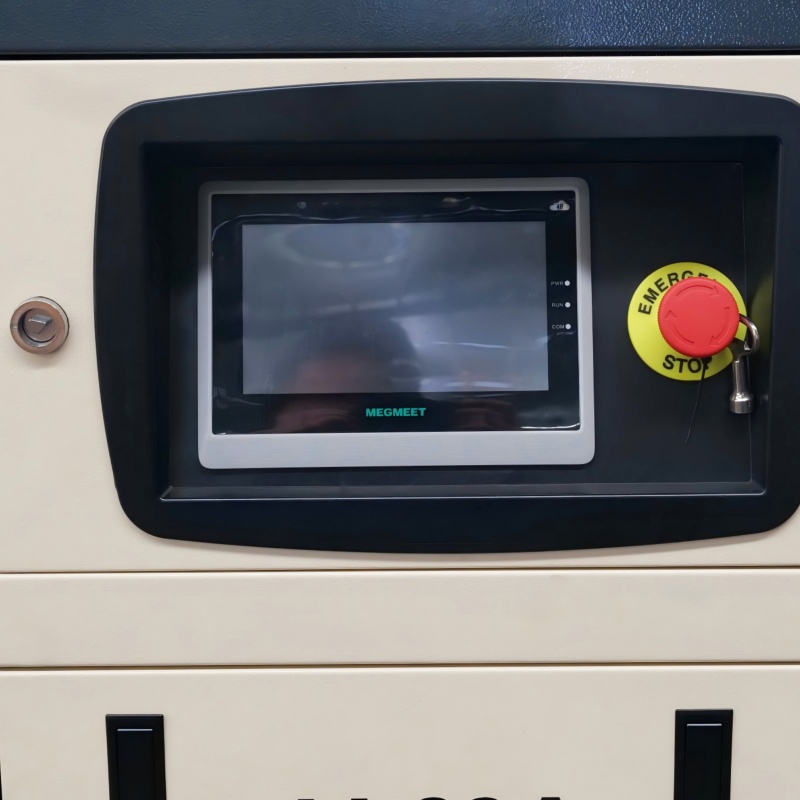

A multi-language PLC control system is deployed, delivering a clean, intuitive interface that allows operators to adjust compressor settings effortlessly.
Fourteen protection mechanisms cover overload, short circuit, phase reversal, low temperature, overvoltage and more to fully protect the unit.
Powered by advanced microcomputer control, it supports intelligent operation, variable speed air volume regulation, automatic load control and soft start. Real-time dynamic data shows pressure, temperature, current and working curves of all parts clearly.
Large memory and equipped with printer interface; It can use computer remote monitoring or multiple linkage control between air compressors.

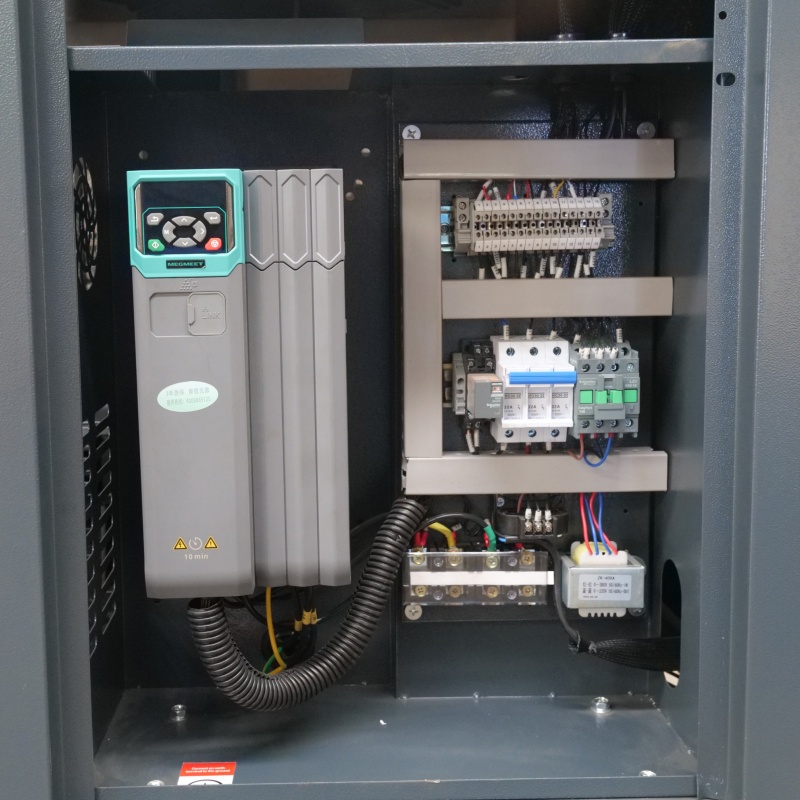

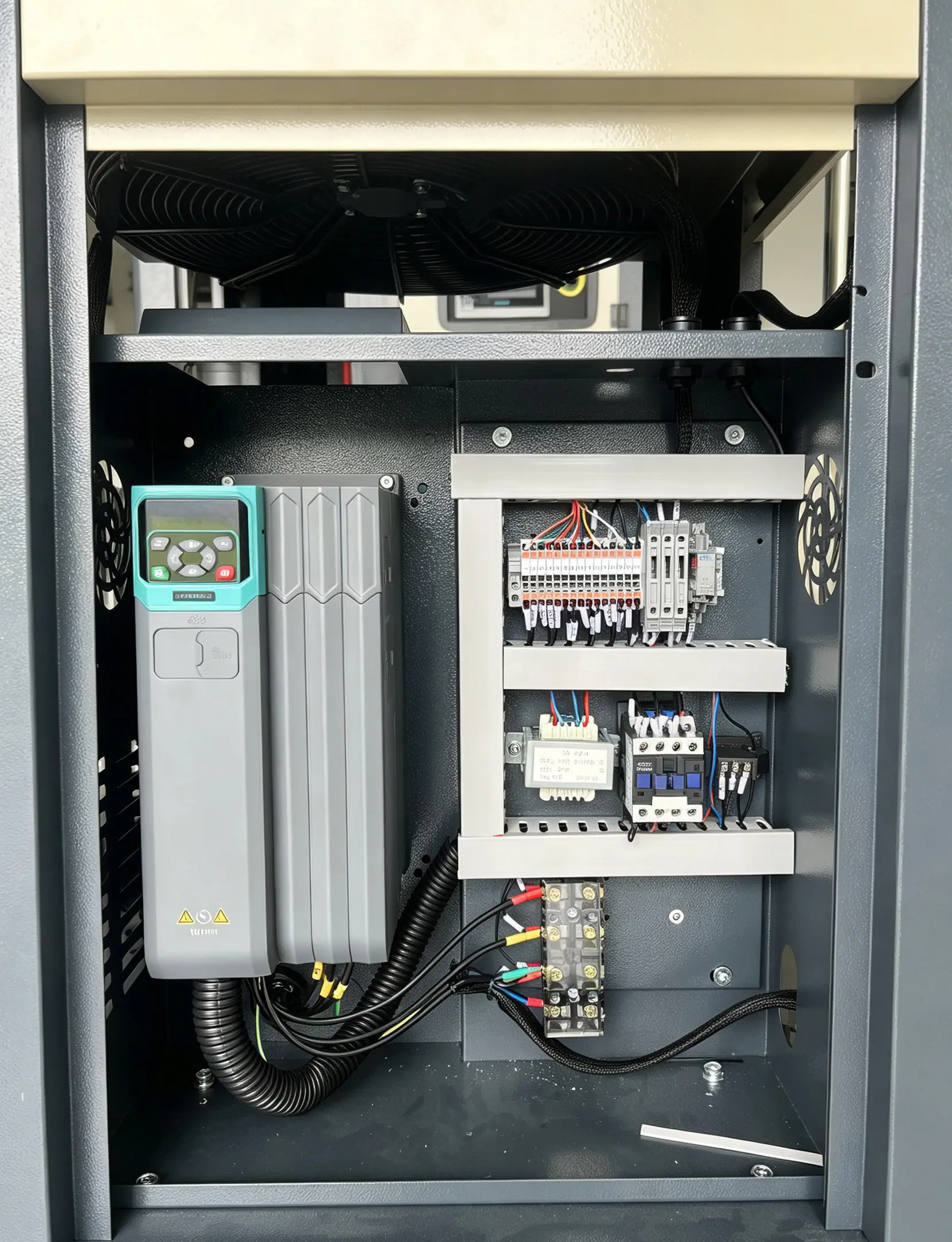

The inverter is the brain of the air compressor, and all operations of the air compressor are processed and regulated through the inverter, ensuring the safe and reliable operation of the air compressor system in all aspects. We typically use inverters from Megmeet, Inovance, and Zoncn, which are internationally renowned brands with stable and reliable quality and guaranteed after-sales service, providing customers with the best possible air compressor user experience.

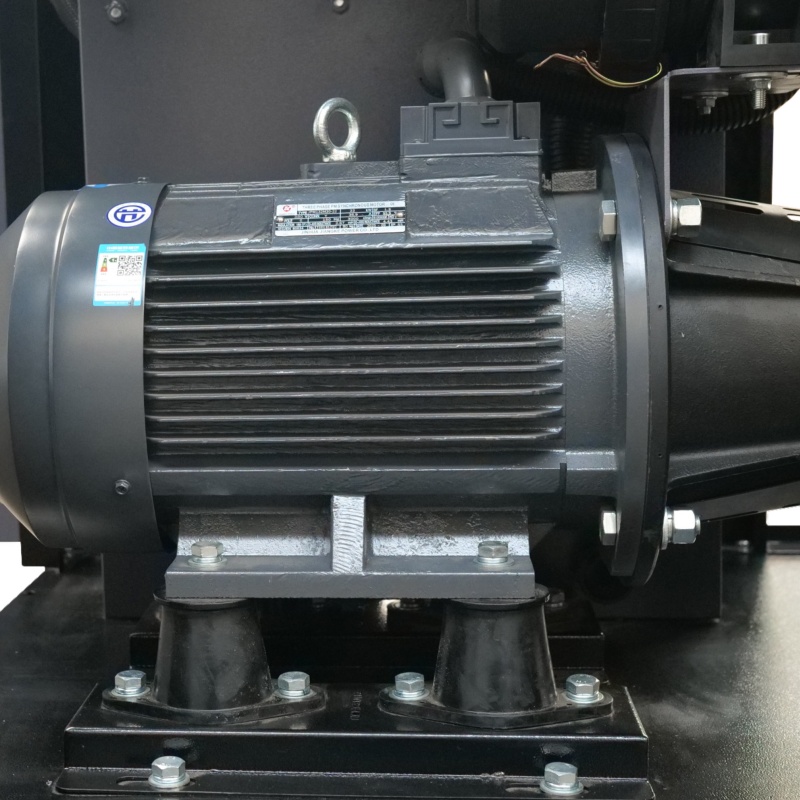

The main motor is an IP55 high-efficiency energy-saving permanent magnet motor carefully selected according to the application of the air compressor. (other IP level available)
All meet the national energy efficiency standards, F-class insulation, B-class temperature rise, effectively prevent the entry of dust. SKF heavy-duty bearings ensure continuous trouble-free operation for a long time.

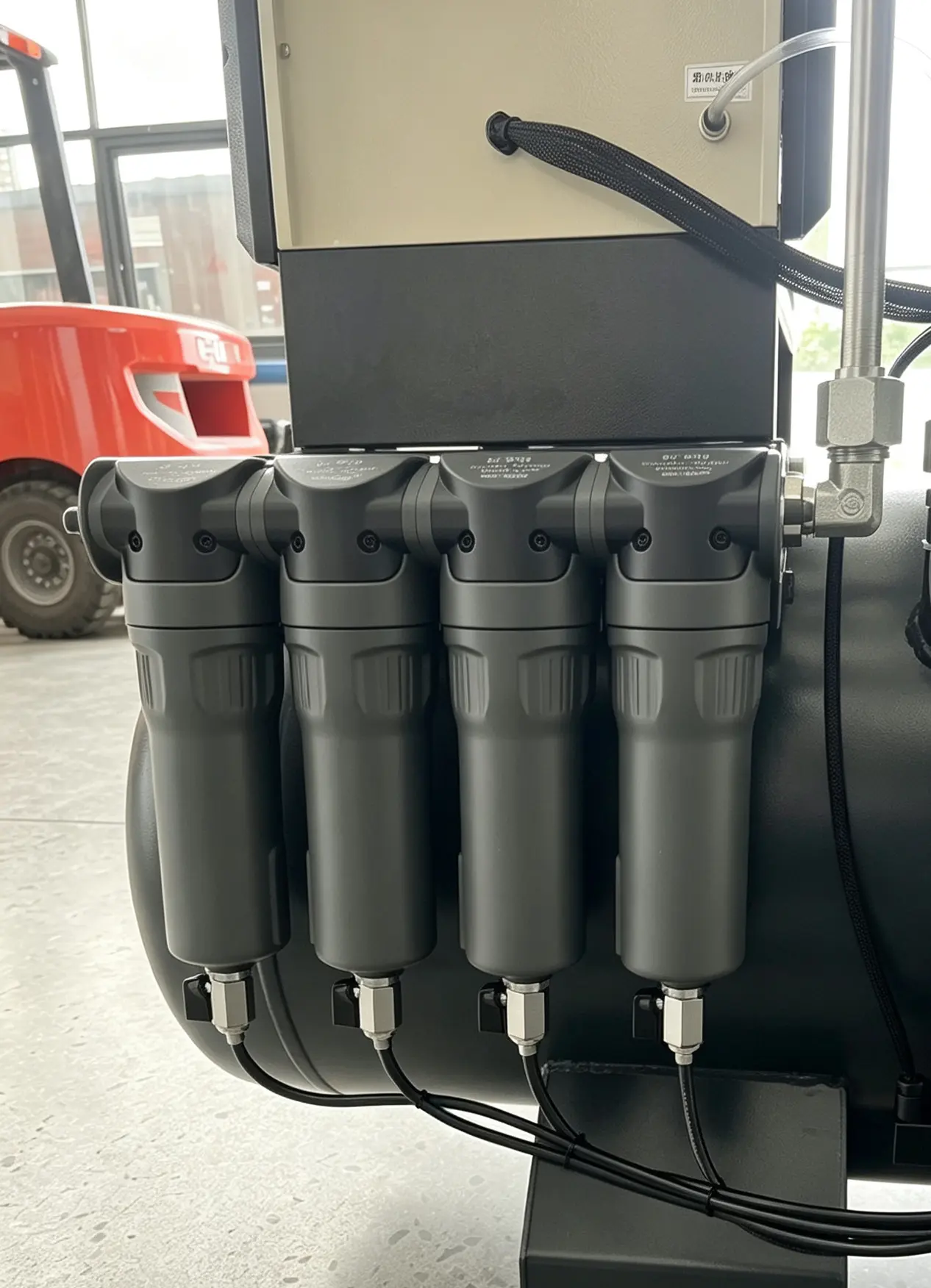

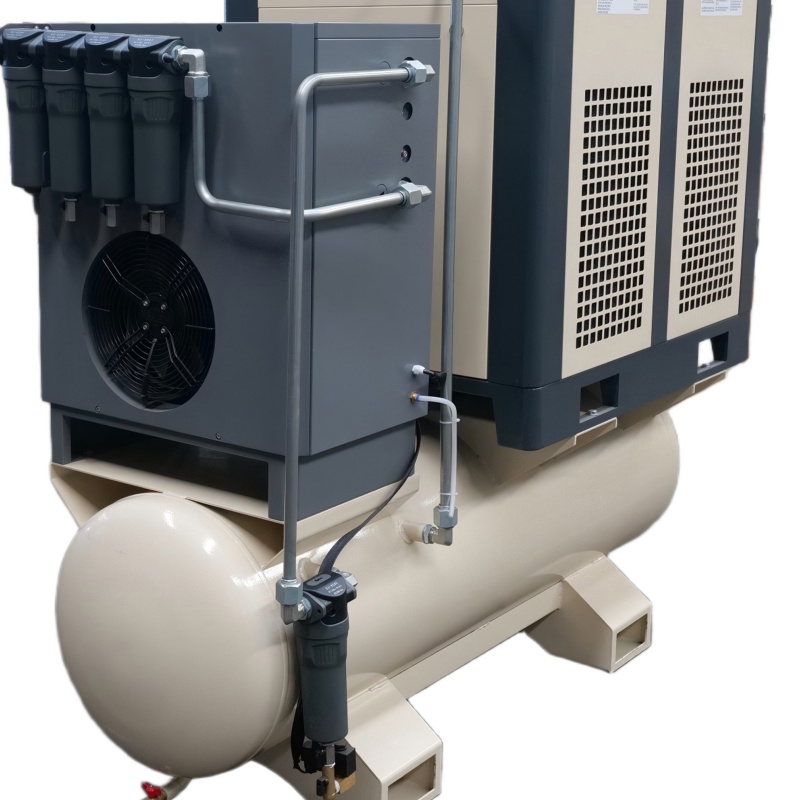

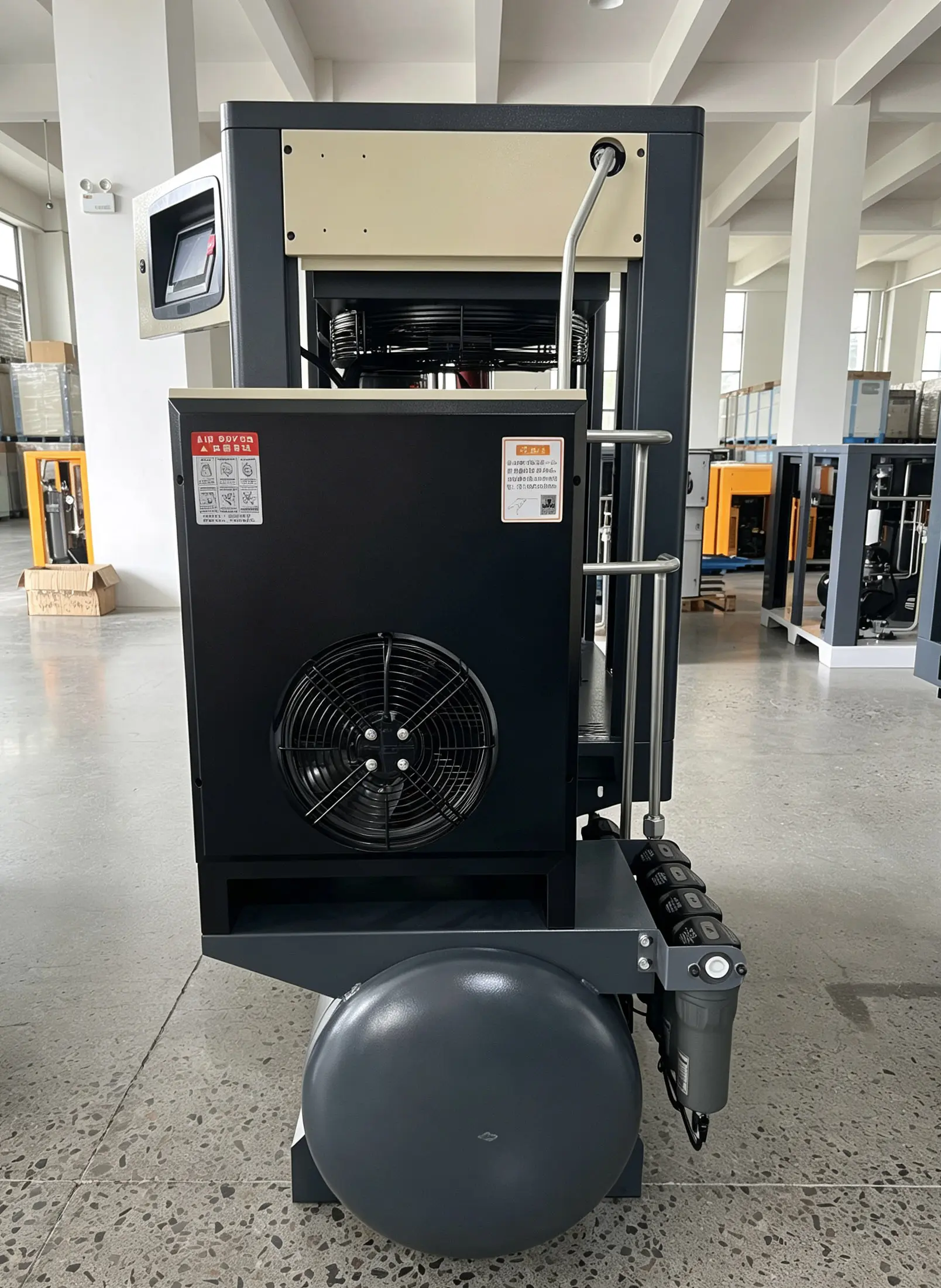

Our five-stage filtration system is tailor-made for the 4-in-1 high-pressure screw air compressor dedicated to laser cutting, delivering exceptionally dry and purified compressed air. Through progressive multi-stage filtering, dust, moisture, oil mist and microscopic particulates are efficiently separated from the air. This premium filtration setup protects precision laser cutting parts, optimizes cutting quality and extends equipment working life. Constant provision of high-purity compressed air maintains stable performance and secure operation amid the stringent operating conditions of laser cutting applications.
| 4-in-1 High Pressure Screw Air Compressor Technical Parameters | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Power (KW) | Horsepower (HP) | Air Displacement/ Pressure (m³/min/MPa) |
Air Outlet Size | Noise db (A) | Driven Method | Type | Start Method | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
| SAH-20HP | 15 | 20 | 1.2/1.6 | DN25 | 72 | Direct Driven | PM VSD | Variable Frequency Start | 1800 | 800 | 1600 | 380 |
| SAH-30HP | 22 | 30 | 2.2/1.6 | DN25 | 72 | 1870 | 900 | 1810 | 465 | |||
| SAH-50HP | 37 | 50 | 3.5/1.6 | DN25 | 73 | 2000 | 800 | 1800 | 600 | |||
Our factory boasts a 15,000 ㎡ production base equipped with a specialized testing validation workshop, ensuring stable performance and energy efficiency of every air compressor before delivery. We have also built a full-process production line for air tanks, allowing us to provide a more complete and integrated product portfolio. We are committed to supplying customers with highly competitive products and tailored compressed air system solutions.
Our team employs a professional technical team that leads industry innovation. Backed by a complete pre-sales and after-sales service team offering product consultation and reliable technical support, we are dedicated to bringing high-quality air compressors to the global market and advancing green, sustainable development across the industry.
A: When selecting an air compressor, it's important to consider the specific needs of your site. Factors to consider include the required flow rate, desired pressure, whether an oil-based or oil-free machine is preferred, and the dew point temperature of the compressed air. By taking these factors into account, you can choose an air compressor that meets your specific needs and ensures optimal performance.
A: We can accept flexible payment include Bank Transfer, LC, DP, or Combination terms as negotiation.
A: We can provide shipping by sea, by air, by express and etc. according to customer requirements.
A: Yes, OEM and ODM are both available for us. With the requirements customization of the material, colors, style, the basic quantities will be advised after we discussed together.
A: The MOQ, or minimum order quantity, for sample orders is just 1 set. However, for compressors ranging from 7.5-37kw, the minimum quantity is 3-5 sets. For compressors over 55KW, the MOQ is 1-2 sets. It's important to note that the MOQ can be adjusted based on your specific situation, so be sure to discuss your needs with our team.
A: 1. Provide customers with installation and commissioning online instructions.
2. Prepare and well-trained engineers available to overseas service within one year.
3. Worldwide agents and after service available.
