High-performance air receivers and integrated compressor packages engineered for maximum safety, thermal efficiency, and pressure stability.
In modern industrial air compressor installations, the air storage tank (also known as an air receiver) performs vital mechanical functions far beyond simple volume containment. Acting as a localized dynamic pressure dampener and kinetic buffer, a high-quality air receiver stabilizes the output pressure of screw or piston compressors, neutralizing pulsations and smoothing the flow profile inside the pipeline infrastructure. Without a sufficient buffer volume, high transient flow demands result in line pressure drops, triggering premature cycling of the compressor. This phenomenon, known as short-cycling, accelerates mechanical fatigue on structural seals, valves, and electric motor starters.
Furthermore, air storage tanks function as secondary structural heat exchangers. As hot compressed air enters the receiver tank, its velocity drops significantly, creating a cooling gradient across the vessel walls. This temperature reduction causes water vapor to condense out of the air stream, settling at the bottom of the vessel where it can be automatically evacuated via condensate drains. Consequently, the storage tank reduces the moisture load placed on downstream dryers and fine filters, improving air purification metrics across the entire manufacturing plant.
The calculation of required storage volume ($V$) depends on the peak flow requirement ($C$), compressor capacity ($S$), allowable pressure drop ($\Delta P = P_1 - P_2$), and target time ($t$) required for the system to buffer the demand load. Calculated as:
$$V = \frac{t \times (C - S) \times P_a}{\Delta P}$$Where $P_a$ is local atmospheric pressure. Implementing professional receivers prevents system failure, ensures stable mechanical execution, and cuts peak electricity demands by minimizing loaded/unloaded transit times.
Smart Air Machinery (Linyi) Co., Ltd., established in 2005, has grown from a regional manufacturing pioneer into a highly diversified multinational manufacturer of industrial screw compressors, heavy-duty piston compressors, pressure vessels, and specialized air treatment equipment. Located in Linyi, the recognized logistics capital of China, the company leverages a highly optimized shipping and material supply network, enabling rapid raw material procurement and cost-effective global export routing.
Over the course of 20 years, Smart Air has structured its operations around continuous technological evolution, investing heavily in state-of-the-art automatic submerged arc welding machinery, advanced testing equipment, and metallurgical R&D. With over 200 dedicated specialists, our company guarantees that every storage tank and integrated compressor unit meets strict national and international regulatory frameworks before leaving our factory floor.
Situated in China's prime logistics hub, Linyi, we have refined over two decades of production methodologies, bringing together a top-tier engineering R&D team and complete, non-destructive testing (NDT) labs.
Characterized by optimized structural design, precise metallurgical selection, and flawless welding execution, our pressure vessels and screw compressors provide reliable operation worldwide.
Smart Air implements a long-term strategic vision focusing on manufacturing integrity, comprehensive technical support, and continuous improvement of brand value in global industrial markets.
Rooted in the principle that "quality builds reputation, reputation creates brands, and brands secure markets," we prioritize rigorous QA checks to verify each product's durability.
Because compressed air storage tanks operate under high mechanical pressure, manufacturing compliance is critical for plant safety. Smart Air designs, manufactures, and tests all pressure vessels in accordance with international safety regulations, including the ASME Boiler and Pressure Vessel Code (BPVC Section VIII Division 1) and European CE Directive (PED 2014/68/EU).
Our quality assurance protocol includes 100% radiographic weld testing, ultrasonic thickness checks, hydrostatic pressure testing to 1.5x the maximum working pressure rating, and thorough surface preparation using sandblasting followed by high-durability external epoxy coatings. These measures ensure long service lives even in demanding chemical, mining, or offshore marine environments.
Smart Air Machinery has established robust logistics pipelines and engineering partnerships across more than 20 countries. Our target exports regularly support operations in highly regulated industrial environments, including the USA, Canada, Colombia, Chile, Australia, New Zealand, Russia, Indonesia, Vietnam, Malaysia, India, Sri Lanka, Bangladesh, Pakistan, Dubai, Afghanistan, Israel, Syria, Kosovo, Tunisia, and Angola.
Our solutions adapt to local engineering requirements. Whether designing customized high-pressure storage tanks to match the rapid load demands of heavy fiber laser cutting platforms, or deploying weather-proof skid-mounted systems for dusty mines, we handle structural configuration, customs clearance paperwork, and secure transport packaging, ensuring safe arrival at your facility.
Discover how custom receiver configurations and screw compressors optimize performance for specific operating conditions.
High-power fiber lasers require clean, dry air at pressures up to 16-30 bar to blow away slag and maintain edge quality. Our storage solutions prevent pressure drops during active cutting runs, protecting expensive focus lenses from soot contamination.
Learn More →
Air jet looms consume high amounts of compressed air during weft insertion. Large-capacity air storage tanks absorb load spikes, helping maintain consistent loom speeds and preventing yarn breakage.
Learn More →
Pneumatic assembly tools and painting booths require stable pressure. Our storage tanks separate moisture before the air dryer, helping ensure paint adhesion remains defect-free.
Learn More →
Chemical processing requires reliable operation and easy maintenance. Our pressure vessels are available in special corrosion-resistant alloys, designed to handle chemical reactions and process control air safely.
Learn More →
Pneumatic breakers, sprayers, and drills operate under harsh environmental conditions. Our mobile compressor configurations combine dynamic tanks and durable frames, designed to withstand demanding outdoor job sites.
Learn More →
Blowing out crevices and operating automated wash gantries requires reliable pressure storage. Our compact storage tanks help wash shops reduce energy costs by preventing frequent compressor motor starts.
Learn More →Technical answers to help plant managers optimize system sizing, ensure regulatory compliance, and plan maintenance.
Premium oil-lubricated screw systems, energy-efficient PM VSD units, and precision filtration components designed to integrate with your receiver tanks.
Ensure long-term efficiency and clean air output with our replacement separators, filters, and all-in-one screw compressor configurations.
Smart Air variable speed drive screw compressors match output to actual air demand, reducing energy consumption compared to fixed-speed units.
Read More →
Two-stage compression helps reduce internal compression ratios, lowering discharge temperatures and enhancing volumetric efficiency.
Read More →
This compact system integrates a screw compressor, refrigerated dryer, high-efficiency filters, and a storage tank on a single skid.
Read More →
A compact tank-mounted screw compressor package designed for small workshops requiring reliable air storage.
Read More →

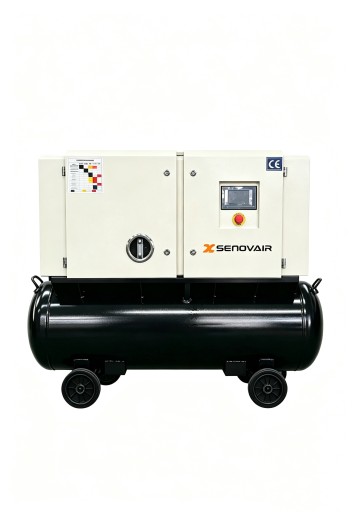

A compact mobile unit combining a screw compressor and an air receiver on wheels for on-site maintenance work.
Read More →

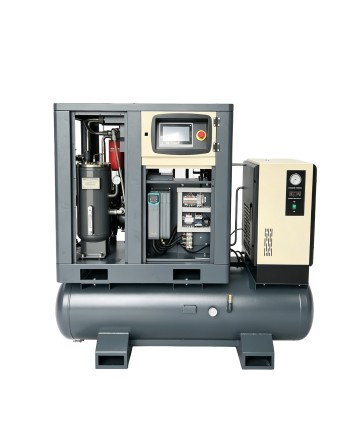

A specialized system supplying high-pressure compressed air, dry and filtered to protect laser optics during cutting operations.
How it works →Detailed performance parameters for our mobile PM VSD integrated models, including sizing, voltage options, and air output capacities.
How it works →

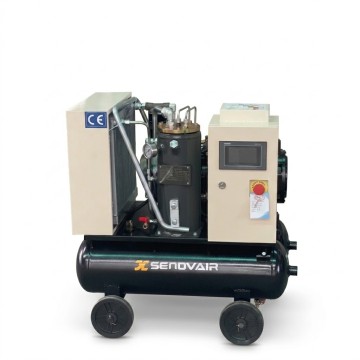

A flexible compressor and storage solution for small operations, providing stable air supply in a mobile configuration.
How it works →

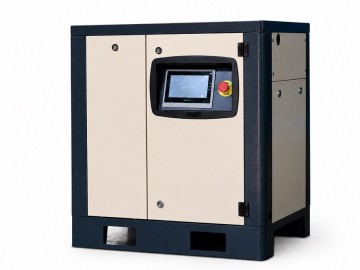

Industrial screw compressors designed for continuous operation, utilizing permanent magnet motors to reduce electrical consumption.
How it works →

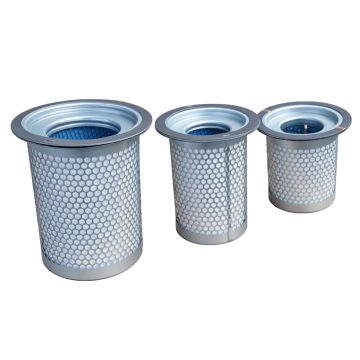

High-efficiency replacement separators designed for screw compressors to ensure minimal oil carryover in the discharge air.
How it works →

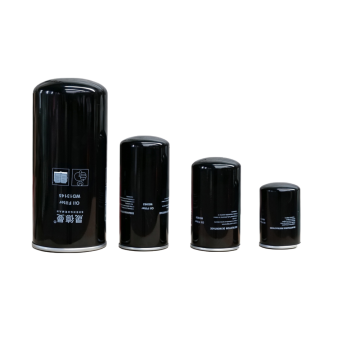

Replacement oil filters designed to protect screw elements by removing particulate contamination from the compressor lubricant.
How it works →
