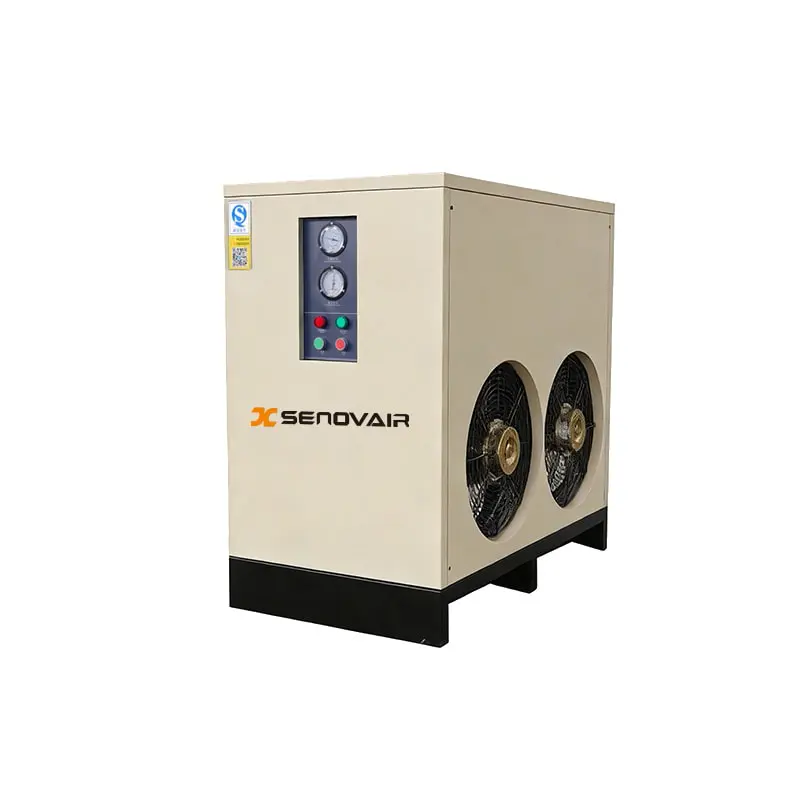

Refrigerated air dryers are widely used in manufacturing, metal processing, automotive, electronics, and other industries where dry compressed air is essential for reliable and efficient operation.
It adopts advanced stainless steel plate-fin structure and integrates precooler, evaporator and air-water separator. It is small in size and will not cause secondary pollution to the compressed air.
The heat exchanger has a compact structure and high heat transfer coefficient. The temperature difference between the inlet and outlet of the precooler 5-8 is much better than that of traditional heat exchangers. It not only ensures extremely low relative humidity at the outlet, but also effectively reduces the load of the evaporator, thereby reducing the consumption of the entire machine.
Small size, easy installation, modular combination improves productivity.
Using internationally renowned brand refrigeration compressors, the performance is reliable and stable.
Control: dew point display, simple operation, remote control.
Refrigerated Air Dryer Technical Parameters
| Model |
Voltage |
Pressure |
Replacement |
Pressure Dew Point |
Intake Air Temp |
Outlet Size |
Refrigerant |
Power |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
| SAR-10HP |
220V/50HZ |
≤1.0MPa |
1.5m³/min |
2-10°C |
≤45°C |
DN25 |
134a |
0.35kw |
650 |
430 |
650 |
34 |
| SAR-20HP |
220V/50HZ |
≤1.0MPa |
2.6m³/min |
2-10°C |
≤45°C |
DN25 |
134a |
0.5kw |
780 |
450 |
740 |
40 |
| SAR-30HP |
220V/50HZ |
≤1.0MPa |
3.8m³/min |
2-10°C |
≤45°C |
DN40 |
R22 |
0.75kw |
830 |
450 |
810 |
50 |
| SAR-50HP |
220V/50HZ |
≤1.0MPa |
6.7m³/min |
2-10°C |
≤45°C |
DN40 |
R22 |
1.5kw |
950 |
510 |
900 |
71 |
| SAR-75HP |
220V/50HZ |
≤1.0MPa |
10.7m³/min |
2-10°C |
≤45°C |
DN40 |
R22 |
2kw |
1030 |
610 |
990 |
94 |
| SAR-100HP |
220V/50HZ |
≤1.0MPa |
13.8m³/min |
2-10°C |
≤45°C |
DN50 |
R22 |
2kw |
1110 |
630 |
1060 |
133 |
Frequently Asked Questions
Q: How to choose air compressor?
When selecting an air compressor, it’s important to consider the specific needs of your site. Factors to consider include the required flow rate, desired pressure, whether an oil-based or oil-free machine is preferred, and the dew point temperature of the compressed air. By taking these factors into account, you can choose an air compressor that meets your specific needs and ensures optimal performance.
Q: Can you do OEM and ODM?
Yes, OEM and ODM are both available for us. With the requirements customization of the material, colors, style, the basic quantities will be advised after we discussed together.
Q: How to place order?
When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
Q: What is the MOQ?
The MOQ, or minimum order quantity, for sample orders is just 1 set. However, for compressors ranging from 7.5-37kw, the minimum quantity is 3-5 sets. For compressors over 55KW, the MOQ is 1-2 sets. It’s important to note that the MOQ can be adjusted based on your specific situation, so be sure to discuss your needs with our team.
Q: How long will you take to arrange production?
As an experienced air compressor manufacturer, our standard production time is typically between 20-25 days.
Q: How about your after-sales service?
- Provide customers with installation and commissioning online instructions.
- Prepare and Well-trained engineers available to overseas service within one year.
- Worldwide agents and after service available.
